Sound Assembly Tool : Interactive sound & fire assembly tool
Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.
Assemblies Found: 103
-
PGD-W-646-24
Sound STC 47 NOAL 18-0830 Fire 1 hr.
-
PGD-15-552-16
Sound STC 48 NOAL 19-0406 Fire 1 hr.
-
PGD-19-558-16
Sound STC 48 NOAL 19-0425 Fire 1 hr.
-

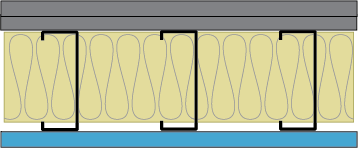

PGD-334-624-16
Sound STC 48 NOAL 21-0387 Fire 1 hr.
-
PGD-686-625-16
Sound STC 48 NOAL 24-08046 Fire 1 hr. -

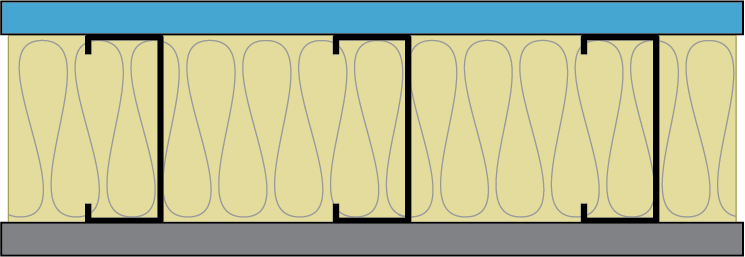

PGD-18-554-16
Sound STC 49 NOAL 19-0422 Fire 1 hr.
-

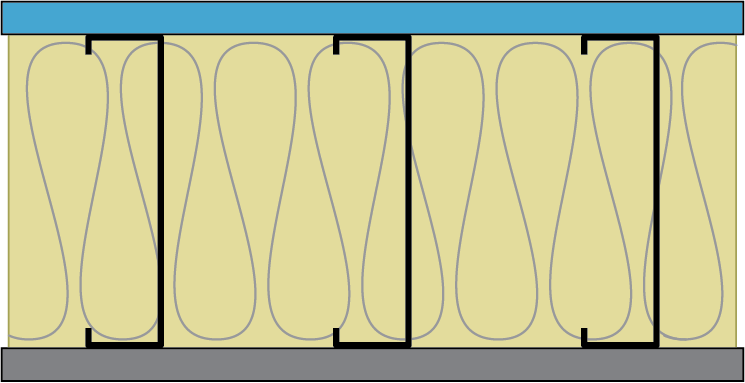

PGD-336-534-16
Sound STC 49 NOAL 22-0923 Fire 1 hr. -
PGD-19-447-16
Sound STC 50 NOAL 17-0459 Fire 1 hr.
-

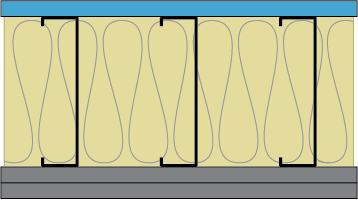

PGD-336-492-16
Sound STC 50 NOAL 20-1228 Fire 1 hr.
-
PGD-436-592-24
Sound STC 50 NOAL 18-1023 Fire 1 hr.
-

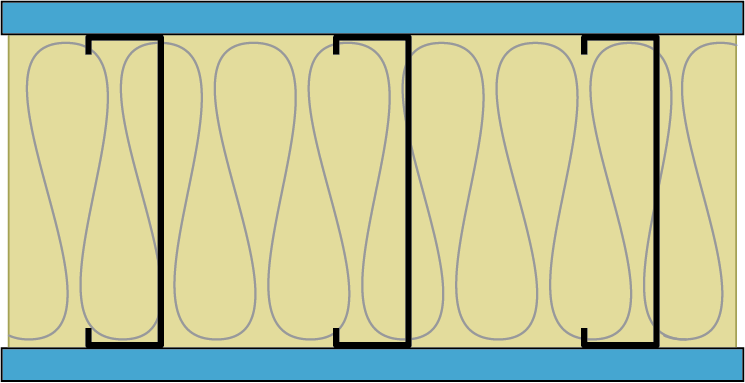

PGD-546-493-16
Sound STC 50 NOAL 24-06040 Fire 1 hr.
-

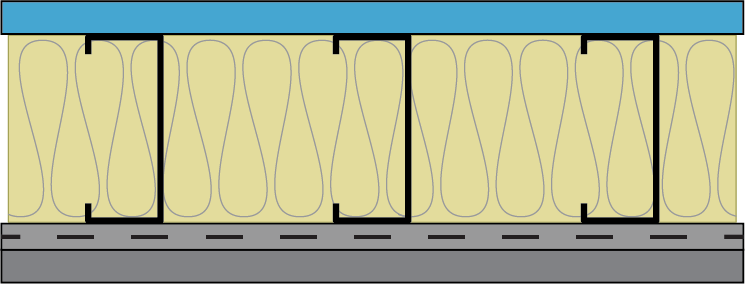

PGD-68-534-16
Sound STC 50 NOAL 18-0611 Fire 1 hr.
-
PGD-97-516-16
Sound STC 50 NOAL 18-0729 Fire 1 hr.
-
PGD-W6-595-16
Sound STC 50 NOAL 21-0514 Fire 1 hr.
-

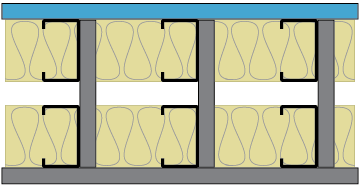

PGD-182D-527B-16
Sound STC 51 NOAL 22-1026 Fire 1 hr.
