Sound Assembly Tool : Interactive sound & fire assembly tool
Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.
Assemblies Found: 103
-
PGD-186-566-16
Sound STC 51 NOAL 24-06028 Fire 1 hr.
-
PGD-19-574-24
Sound STC 51 NOAL 17-0538 Fire 1 hr.
-
PGD-334-572-16
Sound STC 51 NOAL 21-0390 Fire 1 hr.
-
PGD-43-476-16
Sound STC 51 NOAL 18-0747 Fire 1 hr.
-

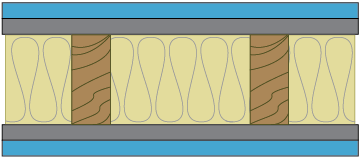

PGD-W-539-24
Sound STC 51 NOAL 23-10063 Fire 1 hr. -

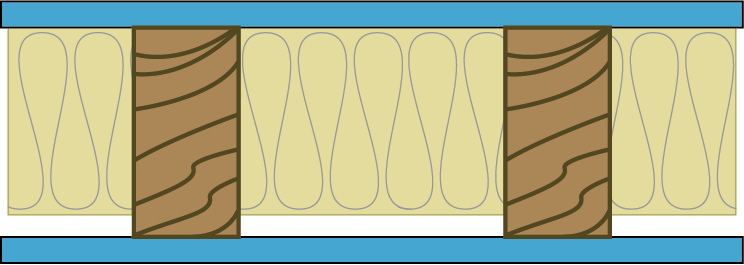

PGD-W-574-24
Sound STC 51 NOAL 23-10071 Fire 1 hr.
-
PGD-WS-537-16
Sound STC 51 NOAL 17-0940 Fire 1 hr.
-
PGD-15-485-16
Sound STC 52 NOAL 19-0405 Fire 1 hr.
-

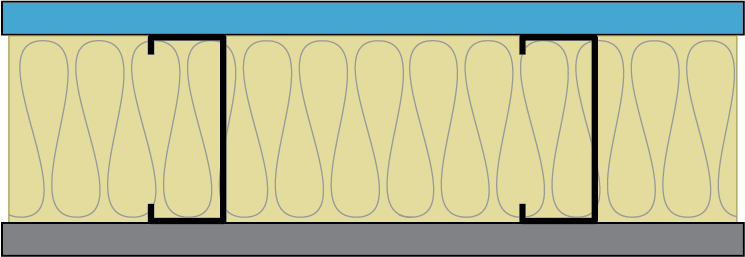

PGD-15-552-24
Sound STC 52 NOAL 18-0519 Fire 1 hr.
-

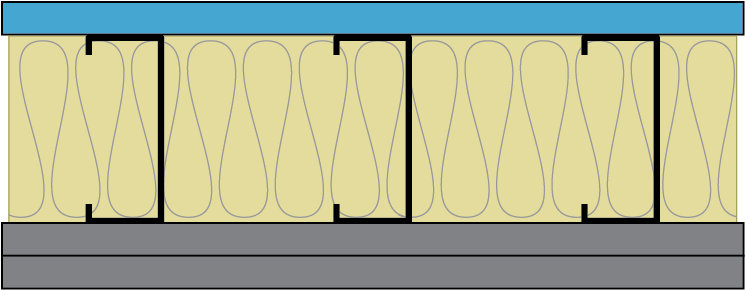

PGD-18-487-16
Sound STC 52 NOAL 18-0860 Fire 1 hr.
-
PGD-18-554-24
Sound STC 52 NOAL 18-0522 Fire 1 hr.
-

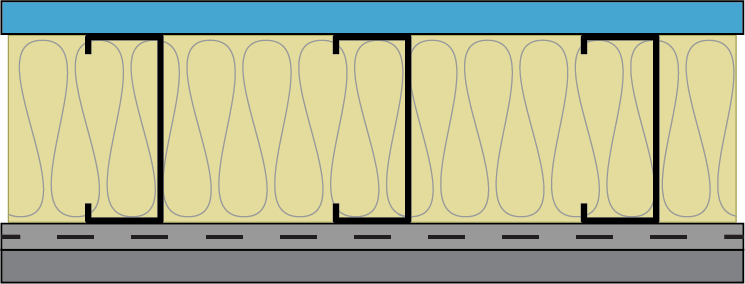

PGD-33-558-16
Sound STC 52 NOAL 21-0379 Fire 1 hr.
-
PGD-33-573-24
Sound STC 52 NOAL 22-0918 Fire 1 hr.
-

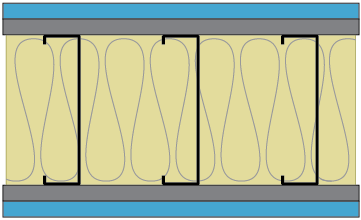

PGD-336-468-16
Sound STC 52 NOAL 24-06033 Fire 1 hr. -

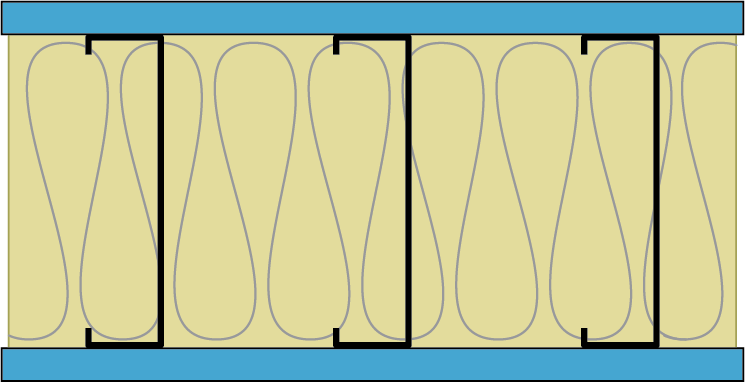

PGD-336-469-16
Sound STC 52 NOAL 24-06034 Fire 1 hr.
