Sound Assembly Tool : Interactive sound & fire assembly tool
Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.
Assemblies Found: 79
-
PGD-334-442-16
Sound STC 57 NOAL 21-0391 Fire 1 hr.
-

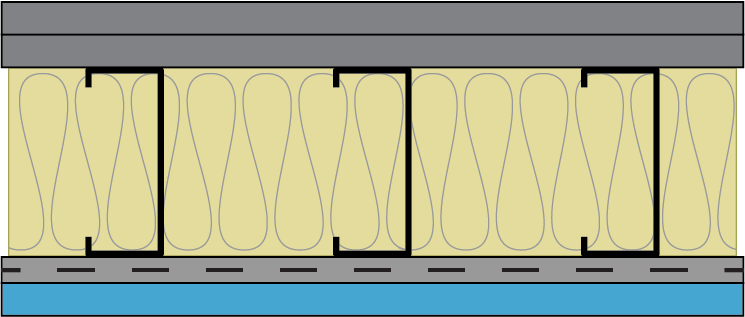

PGD-43-394-16
Sound STC 57 NOAL 18-0748 Fire 1 hr.
-
PGD-W-445-16
Sound STC 57 NOAL 17-0745 Fire 1 hr.
-

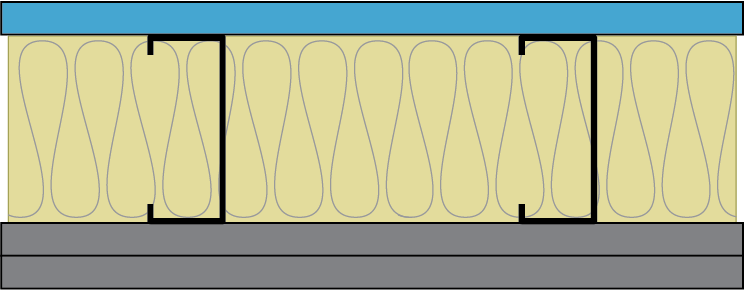

PGD-15-423-24
Sound STC 58 NOAL 17-0435 Fire 1 hr.
-
PGD-15-427-16
Sound STC 58 NOAL 18-0846 Fire 1 hr.
-
PGD-18-402-16
Sound STC 58 NOAL 18-0855 Fire 1 hr.
-

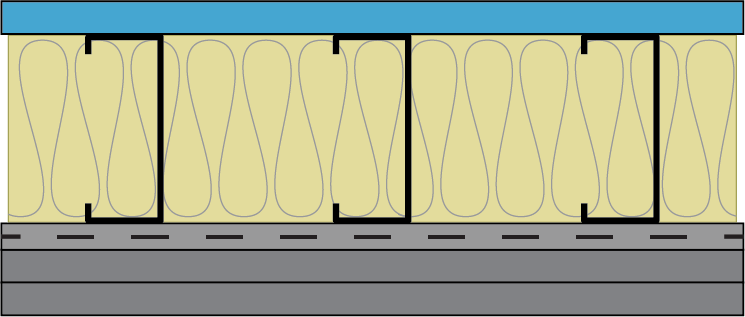

PGD-19-426-16
Sound STC 58 NOAL 17-0509 Fire 1 hr.
-
PGD-33-427-16
Sound STC 58 NOAL 18-0841 Fire 1 hr.
-
PGD-18-402-24
Sound STC 59 NOAL 19-0321 Fire 1 hr.
-

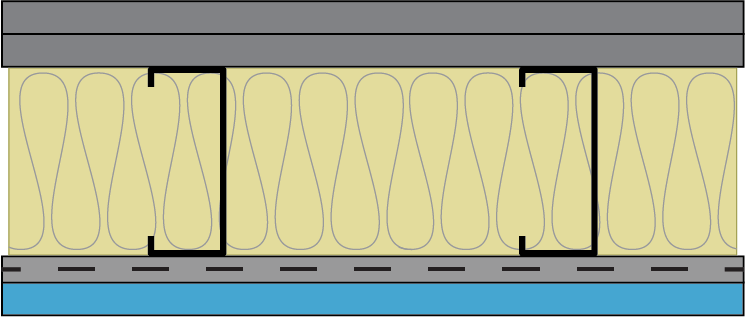

PGD-19-394-24
Sound STC 60 NOAL 17-0530 Fire 1 hr.
-

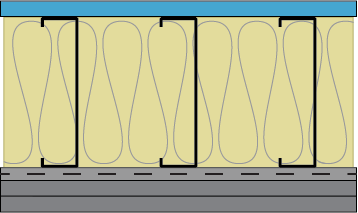

PGD-546-407-16
Sound STC 60 NOAL 21-0358 Fire 1 hr.
-

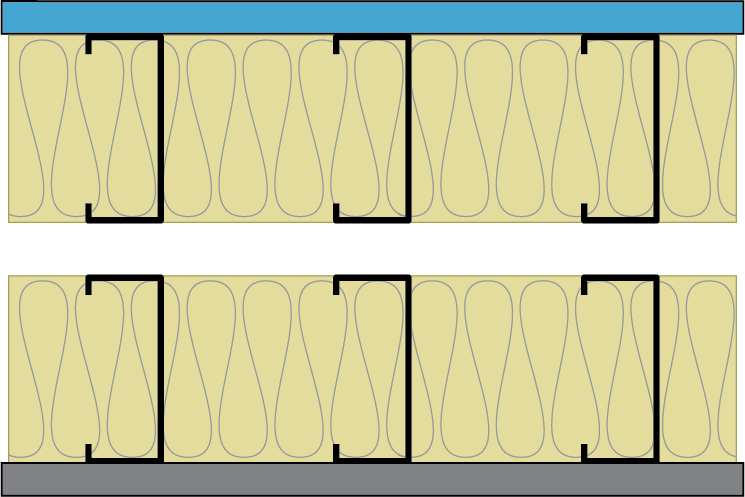

PGD-15D-375-16
Sound STC 61 NOAL 17-0925 Fire 1 hr.
-
PGD-WD-373-16
Sound STC 61 NOAL 21-0740 Fire 1 hr.
-
PGD-WD-354-16
Sound STC 62 NOAL 17-1111 Fire 1 hr.
-
PGD-15S-337-16
Sound STC 63 NOAL 17-0912 Fire 1 hr.
