Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.
Assemblies Found: 79
-
PGD-33-516-24
Sound STC 54 NOAL 18-0205 Fire 1 hr.
-
PGD-436-517-24
Sound STC 54 NOAL 18-1025 Fire 1 hr.
-

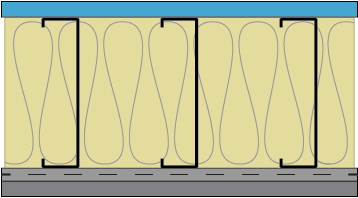

PGD-546-427-16
Sound STC 54 NOAL 21-0357 Fire 1 hr.
-

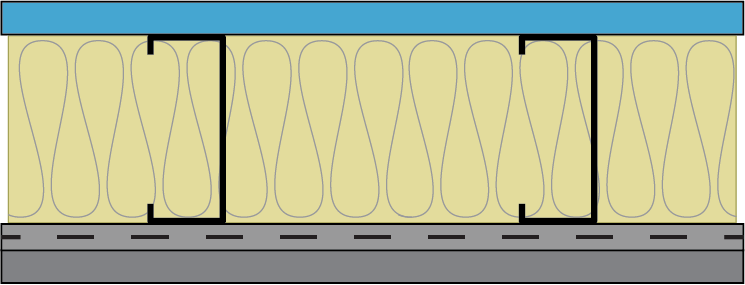

PGD-97-516-24
Sound STC 54 NOAL 19-0736 Fire 1 hr.
-

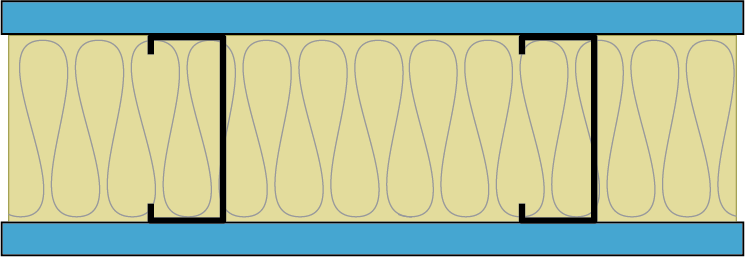

PGD-15-485-24
Sound STC 55 NOAL 18-0517 Fire 1 hr.
-
PGD-18-487-24
Sound STC 55 NOAL 19-0327 Fire 1 hr.
-

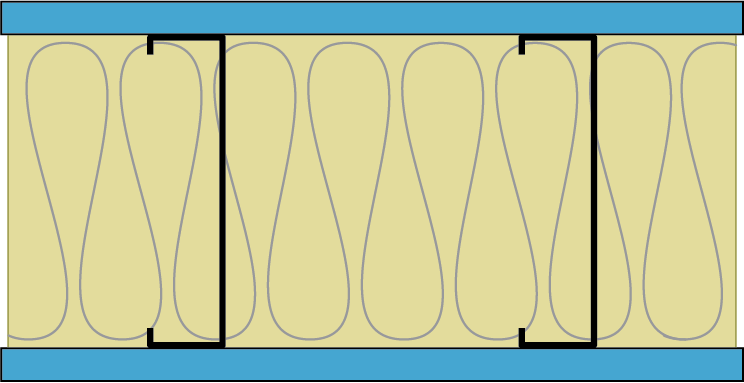

PGD-436-485-24
Sound STC 55 NOAL 18-1024 Fire 1 hr.
-

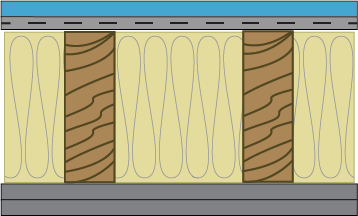

PGD-W6-485-16
Sound STC 55 NOAL 21-0513 Fire 1 hr.
-

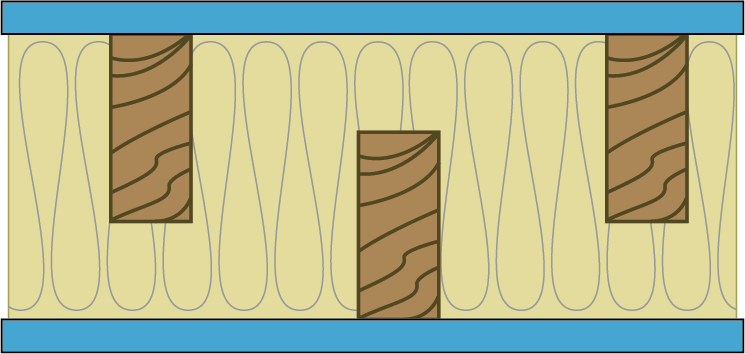

PGD-WS-485-16
Sound STC 55 NOAL 17-0942 Fire 1 hr.
-

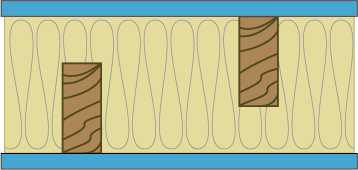

PGD-WS-485-24
Sound STC 55 NOAL 21-0625 Fire 1 hr.
-
PGD-54-406-16
Sound STC 56 NOAL 21-0349 Fire 1 hr.
-

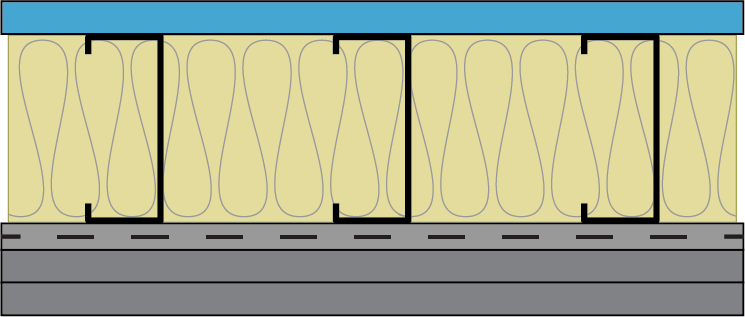

PGD-68-396-16
Sound STC 56 NOAL 18-0612 Fire 1 hr.
-

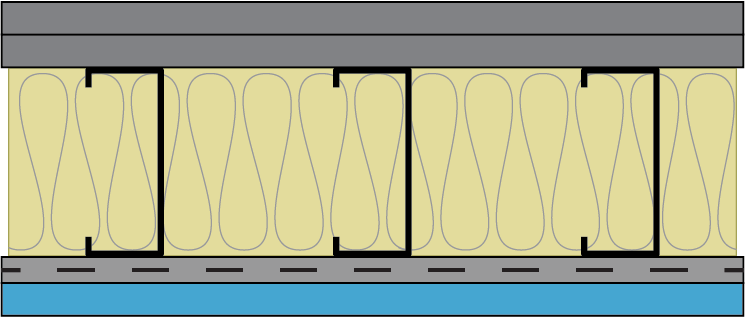

PGD-97-466-16
Sound STC 56 NOAL 18-0732 Fire 1 hr.
-
PGD-WS-467-24
Sound STC 56 NOAL 21-0623 Fire 1 hr.
-
PGD-19-447-24
Sound STC 57 NOAL 17-0539 Fire 1 hr.
