Sound Assembly Tool : Interactive sound & fire assembly tool
Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.
Assemblies Found: 14
-

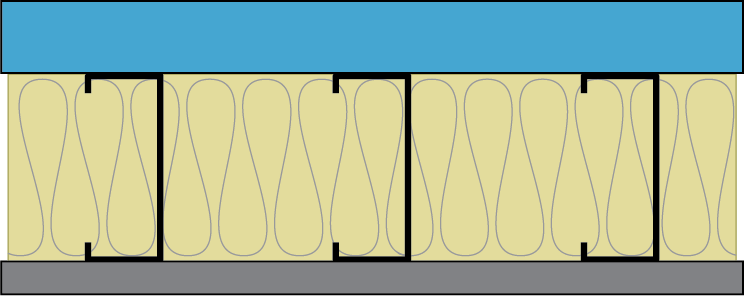

PGD-54-516-16
Sound STC 52 NOAL 18-0909 Fire 1 hr.
-

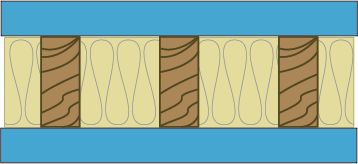

PGD-W-397-16
Sound STC 56 NOAL 20-0409 Fire 1 hr.
-

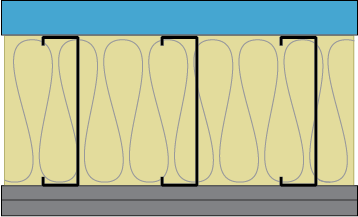

PGD-336-432-16
Sound STC 58 NOAL 20-1235 Fire 1 hr.
-

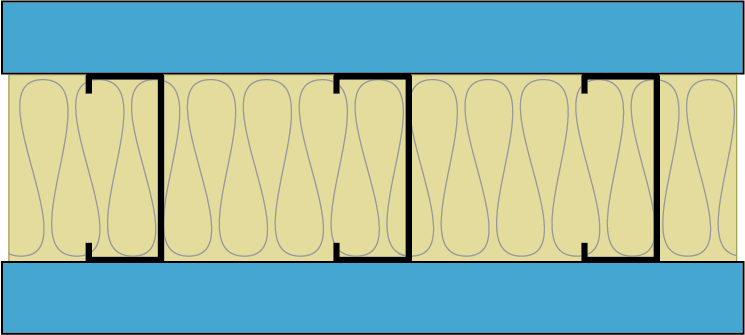

PGD-54-314-16
Sound STC 60 NOAL 18-0910 Fire 2 hrs.
-
PGD-W-397-24
Sound STC 60 NRC TLA-05-048 Fire 1 hr.
-
PGD-33-358-16
Sound STC 62 NOAL 18-0903 Fire 2 hrs.
-
PGD-546-353-16
Sound STC 62 NOAL 18-1111 Fire 2 hrs.
-

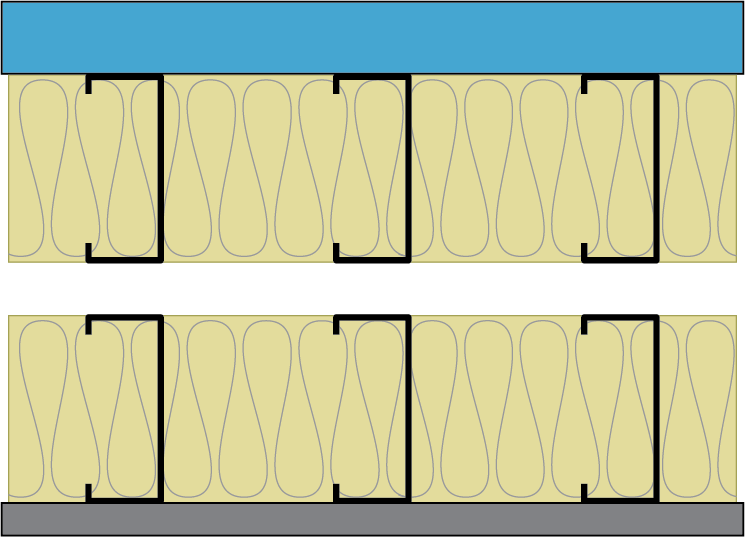

PGD-54D-286-16
Sound STC 65 NOAL 18-0917 Fire Non-Rated
-
PGD-33D-265-16
Sound STC 66 NOAL 20-0742 Fire Non-Rated
-

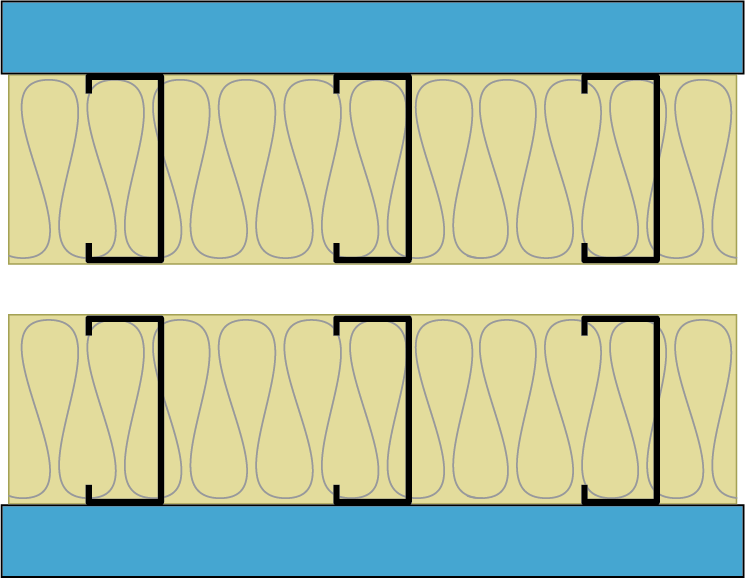

PGD-33D-155-16
Sound STC 72 NOAL 20-0754 Fire Non-Rated
-
PGD-54D-172-16
Sound STC 73 NOAL 21-1217 Fire Non-Rated
-

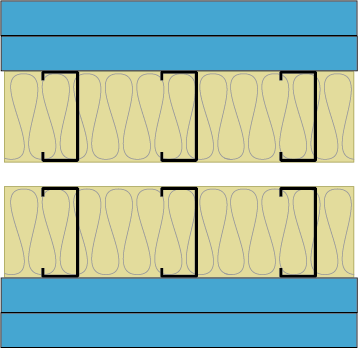

PGD-33D-145-16
Sound STC 80 NOAL 20-0753 Fire Non-Rated
-
PGD-54D-147-16
Sound STC 80 NOAL 21-1218 Fire Non-Rated
-

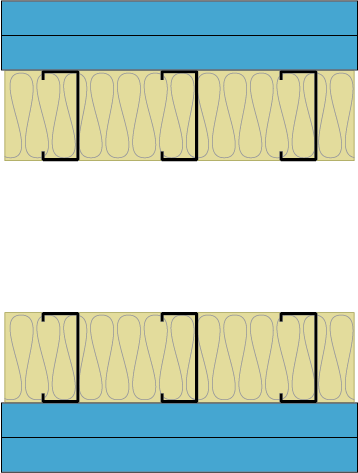

PGD-54D-105-16
Sound STC 83 NOAL 21-1214 Fire Non-Rated
