SOUND CONTROL ASSEMBLY : PGD-546-353-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 62
NOAL 18-1111
-
Fire
2 hrs.
U425;W466
-
Dimensions
Thickness: 8-3/4"
Approx. Weight: 14.3 lb/ft²
-
Bearing
Load Bearing

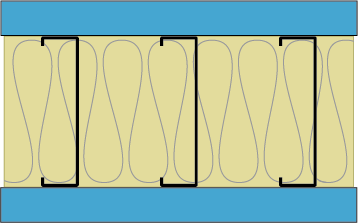

ASSEMBLY DETAILS
- 1-7/8” Type S-12 drywall screws spaced 12 “ o.c. (for fire, minimum 2” screws spaced 8” o.c. at edges and 12” o.c. in the field.).
- One layer: 1-3/8” QuietRock® 545 gypsum panel applied vertically.
- 6” 54 mil steel studs, 16” o.c.
- 6-1/2”, R-19 glass fiber insulation friction fit into stud cavity.
- One layer: 1-3/8” QuietRock® 545 gypsum panel applied vertically.
- 1-7/8” Type S-12 drywall screws spaced 12 “ o.c. (for fire, minimum 2” screws spaced 8” o.c. at edges and 12” o.c. in the field.).
