Sound Assembly Tool : Interactive sound & fire assembly tool
Select your known requirements or wall component preferences to filter a list of tested assemblies. Once you find your solution, download the Summary Tests Reports with design details.
Assemblies Found: 99
-
PGD-33-573-16
Sound STC 40 NOAL 22-0907 Fire 1 hr.
-
PGD-W-646-16
Sound STC 41 NOAL 17-0730 Fire 1 hr.
-
PGD-W6-753-16
Sound STC 42 NOAL 21-0504 Fire 1 hr.
-
PGD-686-662-16
Sound STC 43 NOAL 24-08047 Fire 1 hr. -
PGD-97-602-16
Sound STC 43 NOAL 18-0721 Fire 1 hr.
-
PGD-546-576-16
Sound STC 44 NOAL 21-0355 Fire 1 hr.
-
PGD-19-574-16
Sound STC 45 NOAL 19-0426 Fire 1 hr.
-
PGD-43-595-16
Sound STC 45 NOAL 18-0735 Fire 1 hr.
-
PGD-54-556-16
Sound STC 45 NOAL 18-0626 Fire 1 hr.
-

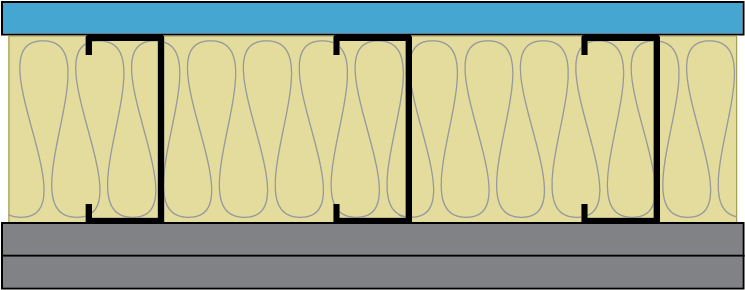

PGD-68-612-16
Sound STC 45 NOAL 18-0608 Fire 1 hr.
-
PGD-W-574-16
Sound STC 45 NOAL 20-0412 Fire 1 hr.
-
PGD-436-485-16
Sound STC 46 NOAL 18-1021 Fire 1 hr.
-
PGD-54-554-16
Sound STC 46 NOAL 22-0570 Fire 1 hr.
-

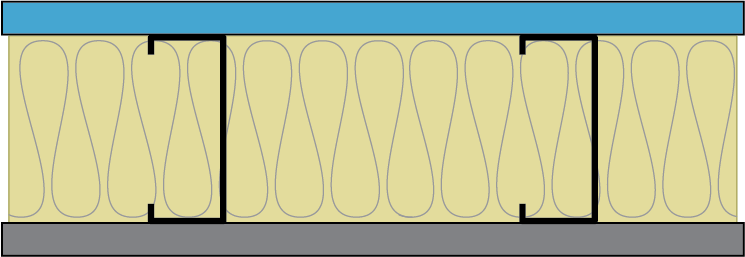

PGD-54-664-24
Sound STC 46 NOAL 19-0723 Fire 1 hr.
-
PGD-686-638-16
Sound STC 47 NOAL 24-08048 Fire 1 hr.
