SOUND CONTROL ASSEMBLY : PGD-WS-537-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 51
NOAL 17-0940
-
Fire
1 hr.
U340
WP-3263
-
Dimensions
Thickness: 6-3/4"
Approx. Weight: 7.4 lb/ft²
-
Bearing
Load Bearing

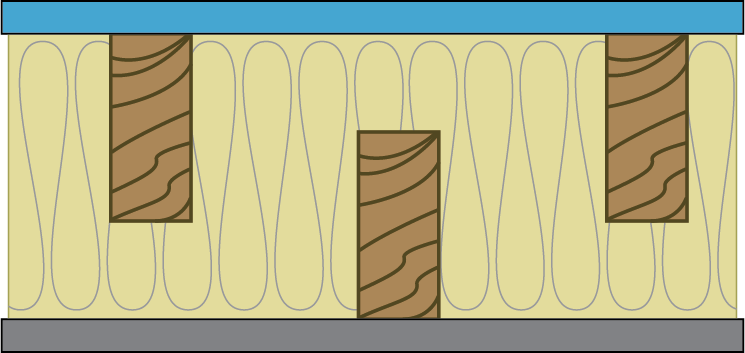

ASSEMBLY DETAILS
- 1-1/4” Type W drywall screws 8” o.c. (for fire 1-7/8” drywall screws 7” o.c.)
- One layer 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 2 x 4 wood studs on 2×6 plates spaced 16” o.c. staggered 8” o.c.
- 6-1/4”, R-19 glass fiber insulation friction fit into stud cavity.
- One layer 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1-7/8” Type W bugle head drywall screws 7” o.c.
