SOUND CONTROL ASSEMBLY : PGD-WD-468-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 56

    NOAL 17-1107

  • Fire

    1 hr.

    U341

  • Dimensions

    Thickness: 9-1/4"

    Approx. Weight: 7 lb/ft²

  • Bearing

    Load Bearing

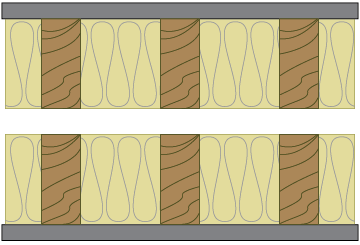

ASSEMBLY DETAILS

  • 2” Type W bugle head drywall screws 7” o.c. (for fire, minimum 1-7/8” screws)
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 2 x 4 wood studs 16” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • 1” air gap.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  •  2 x 4 wood studs 16” o.c.
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 2” Type W bugle head drywall screws 7” o.c. (for fire, minimum 1-7/8” screws)
