SOUND CONTROL ASSEMBLY : PGD-W6-753-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 42

    NOAL 21-0504

  • Fire

    1 hr.

    U305

  • Dimensions

    Thickness: 6-3/4"

    Approx. Weight: 6.9 lb/ft²

  • Bearing

    Load Bearing

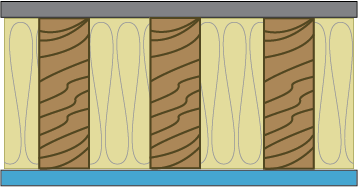

ASSEMBLY DETAILS

  • 1-7/8’’ Type S drywall screws spaced 7” o.c.
  • One layer 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 2 x 6 wood studs 16” o.c.
  • 6-1/4”, R-19 glass fiber insulation friction fit into stud cavity.
  • One layer 5/8” QuietRock® ES or QuietRock® ES MR Type X gypsum panel applied vertically.
  • 1-1/4’’ Type S drywall screws spaced 8” o.c.
