SOUND CONTROL ASSEMBLY : PGD-W6-625-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 48

    NOAL 21-0510

  • Fire

    1 hr.

    U305

  • Dimensions

    Thickness: 7-1/4"

    Approx. Weight: 6.4 lb/ft²

  • Bearing

    Load Bearing

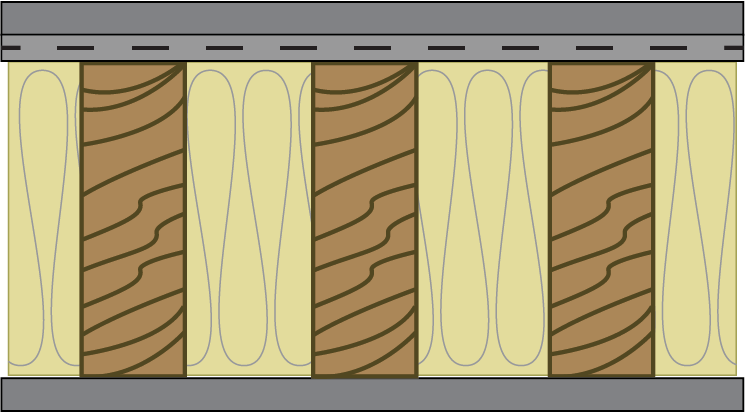

ASSEMBLY DETAILS

  • 1’ Type S drywall screws spaced 8” o.c.
  • One layer 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • Resilient channel applied at right-angle, 24” o.c.
  • 1-1/4 Type W pan head screw attaching Resilient Channel to studs.
  • 2 x 6 wood studs 16” o.c.
  • 6-1/4”, R-19 glass fiber insulation friction fit into stud cavity.
  • One layer 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1-7/8’’ Type W drywall screws spaced 7” o.c.
