SOUND CONTROL ASSEMBLY : PGD-W6-565-24
ASSEMBLY COMPONENTS
-
Acoustical
STC 53
NOAL 21-1052
-
Fire
1 hr.
U309
-
Dimensions
Thickness: 6-3/4"
Approx. Weight: 6.6 lb/ft²
-
Bearing
Load Bearing

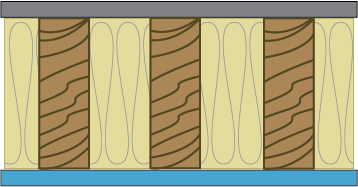

ASSEMBLY DETAILS
- 1-5/8’ Type S drywall screws spaced 12” o.c. at perimeter and 8” o.c. in field.
- One layer 5/8” QuietRock® 530 or QuietRock® 530 RF gypsum panel applied vertically.
- 2 x 6 wood studs 24” o.c.
- 6-1/4”, R-19 glass fiber insulation friction fit into stud cavity.
- One layer 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1-7/8’’ Type S drywall screws spaced 7” o.c..
