SOUND CONTROL ASSEMBLY : PGD-W6-467-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 49
NOAL 21-1047
-
Fire
1 hr.
V310
-
Dimensions
Thickness: 6-3/4"
Approx. Weight: 7.7 lb/ft²
-
Bearing
Load Bearing

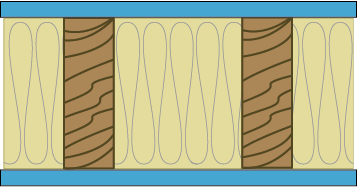

ASSEMBLY DETAILS
- 1-5/8’’ Type S drywall screws spaced 12” o.c. in the perimeter and 8” o.c.
- One layer: 5/8” QuietRock® 530 or QuietRock® 530 RF type X gypsum panel applied vertically.
- 2 x 6 wood studs 16” o.c.
- 6”, R-19 glass fiber insulation friction fit into stud cavity.
- Opposite side One layer: 5/8” QuietRock® 530 or QuietRock® 530 RF type X gypsum panel applied vertically.
- 1-5/8’’ Type S drywall screws spaced 12” o.c. in the perimeter and 8” o.c.
