SOUND CONTROL ASSEMBLY : PGD-W-914-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 34

    NOAL 20-0506

  • Fire

    Non-Rated

    Non-Rated

  • Dimensions

    Thickness: 4-1/2"

    Approx. Weight: 4.1 lb/ft²

  • Bearing

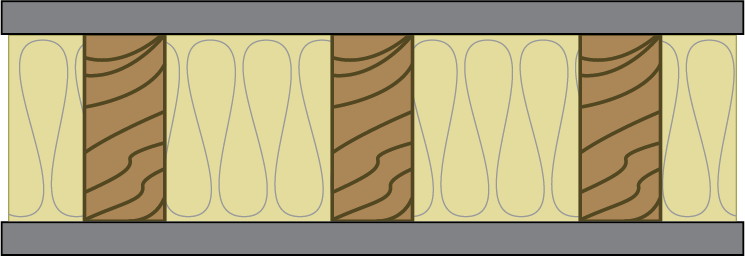

ASSEMBLY DETAILS

  • 1-1/4” Type W drywall screws spaced 12” o.c.
  • One layer 1/2” PABCO® Litecore® gypsum panel.
  • 2 x 4 wood studs 16” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • One layer 1/2” PABCO® Litecore® gypsum panel.
  • 1-1/4” Type W drywall screws spaced 12” o.c.
