SOUND CONTROL ASSEMBLY : PGD-W-910-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 39

    NOAL 23-10060

  • Fire

    1 hr.

    U309

  • Dimensions

    Thickness: 4-3/4"

    Approx. Weight: 5.4 lb/ft²

  • Bearing

    Load Bearing

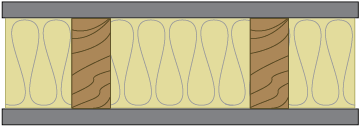

ASSEMBLY DETAILS

  • 1-7/8” Type W drywall screws spaced 7” o.c.
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied horizontally.
  • 2 x 4 wood studs 24”
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied horizontally.
  • 1-7/8” Type W drywall screws spaced 7” o.c.
