SOUND CONTROL ASSEMBLY : PGD-W-824-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 38

    NOAL 17-0734

  • Fire

    2 hrs.

    U301

  • Dimensions

    Thickness: 6"

    Approx. Weight: 9.9 lb/ft²

  • Bearing

    Load Bearing

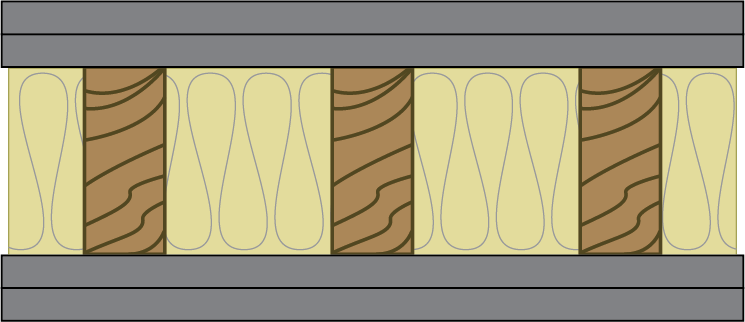

ASSEMBLY DETAILS

  • 2-1/2’ Type W drywall screws spaced 8” o.c. (for fire, minimum 2-3/8” screws).
  • Face layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied horizontally.
  • 2” Type W drywall screws 6” o.c. (for fire, minimum 1-7/8” screws)
  • Base layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied horizontally.
  • 2 x 4 wood studs 16” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • Base layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied horizontally.
  • 2” Type W drywall screws 6” o.c. (for fire, minimum 1-7/8” screws)
  • Face layer: type 5/8”X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied horizontally.
  • 2-1/2” Type W drywall screws 8” o.c. (for fire, minimum 2-3/8” screws)
