SOUND CONTROL ASSEMBLY : PGD-W-648-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 41
NOAL 20-0507
-
Fire
Non-Rated
Non-Rated
-
Dimensions
Thickness: 5"
Approx. Weight: 6.3 lb/ft²
-
Bearing
Non-Load Bearing

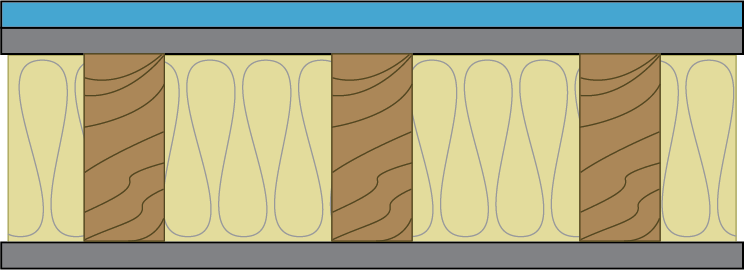

ASSEMBLY DETAILS
- 1-7/8” Type W screws12” o.c.
- Face layer: 1/2” QuietRock® 510 gypsum panel applied vertically.
- 1-1/4” Type W screws 12” o.c.
- Base layer: 1/2” PABCO® Litecore® gypsum panel.
- 2 x 4 wood studs 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One layer 1/2” PABCO® Litecore® gypsum panel.
- 1-1/4” Type W screws 12” o.c.
