SOUND CONTROL ASSEMBLY : PGD-W-574-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 45
NOAL 20-0412
-
Fire
1 hr.
U305
GA WP 3377
-
Dimensions
Thickness: 4-3/4"
Approx. Weight: 6.8 lb/ft²
-
Bearing
Load Bearing

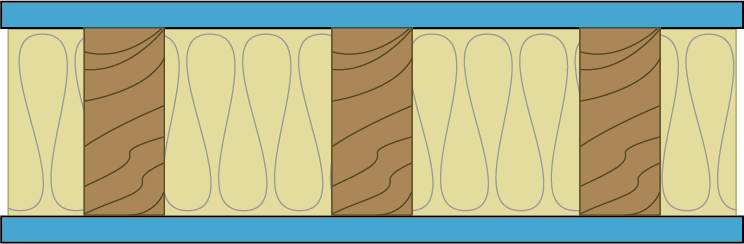

ASSEMBLY DETAILS
- 2” Type W drywall screws 8” o.c. (for fire 1-7/8’’ Type W drywall screws 7” o.c.).
- One layer 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 2 x 4 wood studs 16” o.c.”
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One layer 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- Type W drywall screws 8” o.c. (for fire 1-7/8’’ Type W drywall screws 7” o.c.).
