SOUND CONTROL ASSEMBLY : PGD-W-557-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 45
NOAL 20-0525
-
Fire
Non-Rated
Non-Rated
-
Dimensions
Thickness: 4-1/2"
Approx. Weight: 5.7 lb/ft²
-
Bearing

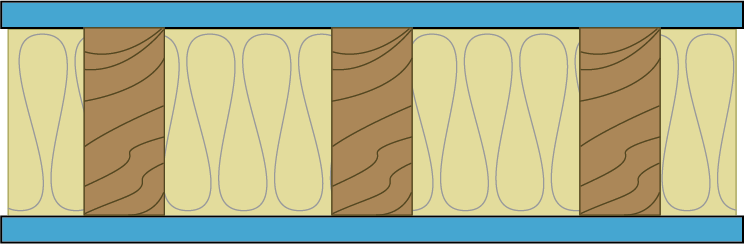

ASSEMBLY DETAILS
- 1-1/4” type W drywall screws 12” o.c.
- One layer 1/2” QuietRock® 510 gypsum panel applied vertically.
- 2 x 4 wood studs 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One layer 1/2” QuietRock® 510 gypsum panel applied vertically.
- 1-1/4” type W drywall screws 12” o.c.
