SOUND CONTROL ASSEMBLY : PGD-W-535-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 53
NOAL 17-0747
-
Fire
1 hr.
U305
WP-3264
-
Dimensions
Thickness: 5-1/4"
Approx. Weight: 6.4 lb/ft²
-
Bearing
Load Bearing

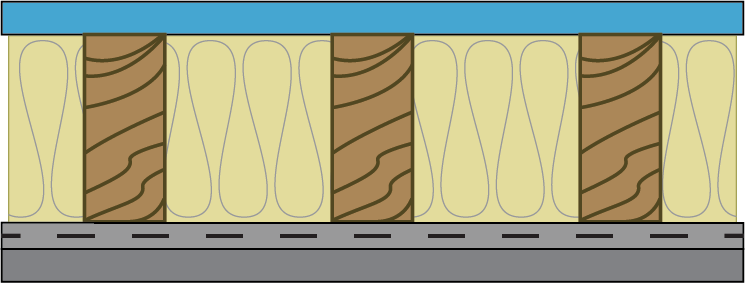

ASSEMBLY DETAILS
- 2’ Type W drywall screws spaced 7” o.c. (for fire, minimum 1-5/8” screws)
- One layer 5/8” QuietRock® ES or QuietRock® ES MR Type X gypsum panel applied vertically.
- 2 x 4 wood studs 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- Resilient channel applied at right-angle, 24” o.c.
- 1-1/4 Type W pan head screw attaching Resilient Channel to studs.
- One layer type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied horizontally.
- 1’’ Type S drywall screws 8” o.c.
