SOUND CONTROL ASSEMBLY : PGD-546-738-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 39

    NOAL 22-0780

  • Fire

    1 hr.

    U425

  • Dimensions

    Thickness: 7-1/4"

    Approx. Weight: 6.5 lb/ft²

  • Bearing

    Load Bearing

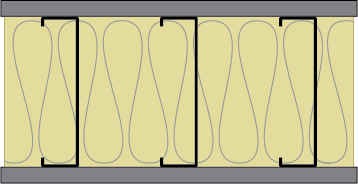

ASSEMBLY DETAILS

  • 1” Type S-12 drywall screws 12“ o.c.
  • One layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 6” 54 mil steel studs, 16” o.c.
  • 6-1/4” R-19 glass fiber insulation friction fit into stud cavity
  • One layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1” Type S-12 drywall screws 12“ o.c.
