SOUND CONTROL ASSEMBLY : PGD-546-587-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 48

    NOAL 21-0360

  • Fire

    1 hr.

    U425

  • Dimensions

    Thickness: 7-3/4"

    Approx. Weight: 6.5 lb/ft²

  • Bearing

    Load Bearing

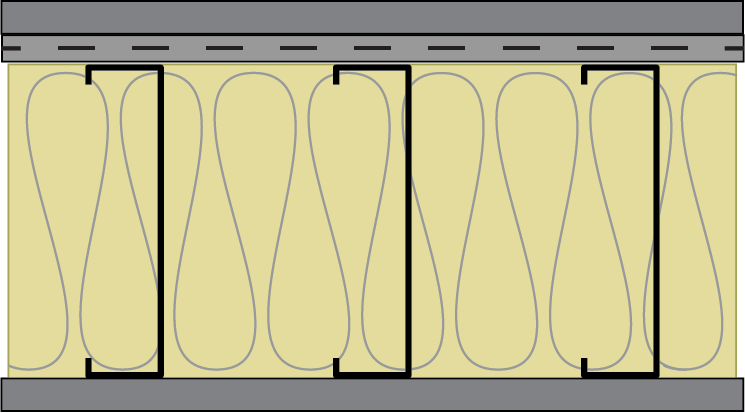

ASSEMBLY DETAILS

  • 1” Type S drywall screws spaced 12”o.c.
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • Resilient channel applied at right-angle, 24” o.c.
  • 1/2” Type S-12 screws attaching resilient channel to stud at each intersection.
  • 6” 54 mil steel studs, 16” o.c.
  • 6-1/4”, R-19 glass fiber insulation friction fit into stud cavity.
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1” Type S-12 drywall screws 8” o.c. at edges and 12 “ o.c. in the field. (for fire, screws spaced 12” o.c.)
