SOUND CONTROL ASSEMBLY : PGD-546-576-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 44
NOAL 21-0355
-
Fire
1 hr.
U425
WP-1086
-
Dimensions
Thickness: 7-1/4"
Approx. Weight: 7 lb/ft²
-
Bearing
Load Bearing

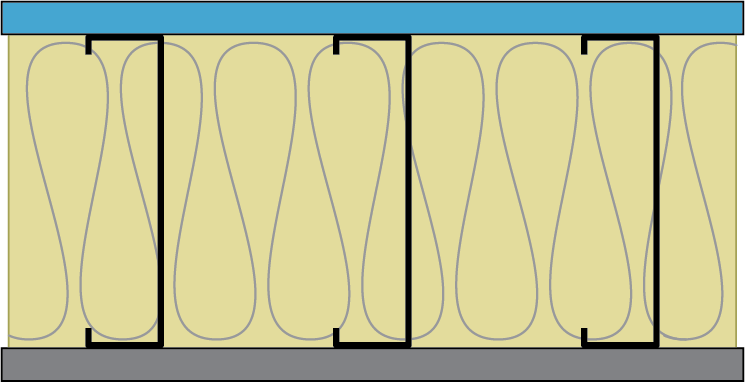

ASSEMBLY DETAILS
- 1” Type S screws 8” o.c. at edges and 12 “ o.c. in the field. (For fire, minimum 1” screws spaced 12”o.c.)
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR Type X gypsum panel applied vertically.
- 6” 54 mil steel studs, 16” o.c.
- 6” R-19 glass fiber insulation friction fit into stud cavity.
- One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1” Type S screws 8” o.c. at edges and 12 “ o.c. in the field. (For fire, minimum 1” screws spaced 12”o.c.)
