SOUND CONTROL ASSEMBLY : PGD-54-667-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 46

    NOAL 19-0727

  • Fire

    2 hrs.

    U425

  • Dimensions

    Thickness: 6-1/8"

    Approx. Weight: 9.7 lb/ft²

  • Bearing

    Limited Load Bearing

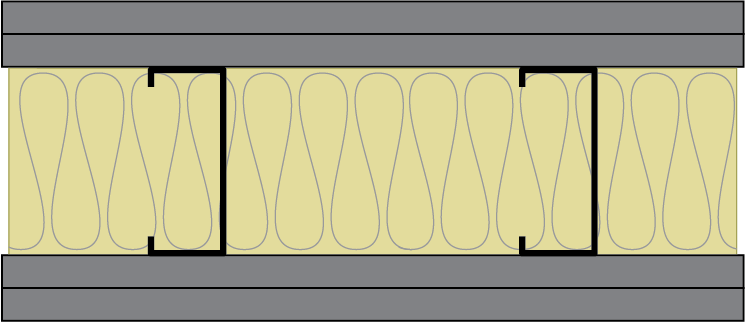

ASSEMBLY DETAILS

  • 1-5/8” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, screws spaced 12” o.c.).
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1” screws).
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 3-5/8” 54 mil steel studs, 24” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1” screws).
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-5/8” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, screws spaced 12” o.c.).
