SOUND CONTROL ASSEMBLY : PGD-436-592-24
ASSEMBLY COMPONENTS
-
Acoustical
STC 50
NOAL 18-1023
-
Fire
1 hr.
U425
-
Dimensions
Thickness: 7-1/4"
Approx. Weight: 6.2 lb/ft²
-
Bearing
Load Bearing

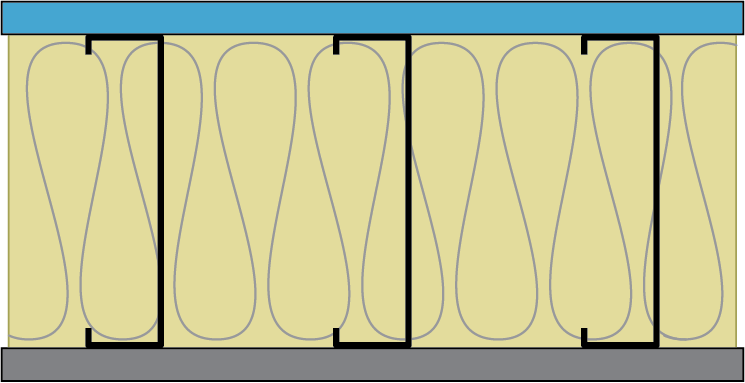

ASSEMBLY DETAILS
- 1” Type S-12 drywall screws 12“ o.c.
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 6” 43 mil steel studs, 24” o.c.
- 3-1/2” , R-13 glass fiber insulation friction fit into stud cavity
- One layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1” Type S12 drywall screws 12“ o.c.
