SOUND CONTROL ASSEMBLY : PGD-436-517-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 54

    NOAL 18-1025

  • Fire

    1 hr.

    U425

  • Dimensions

    Thickness: 7-7/8"

    Approx. Weight: 8.4 lb/ft²

  • Bearing

    Load Bearing

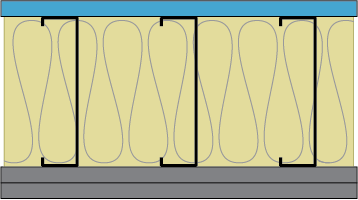

ASSEMBLY DETAILS

  • 1” Type S-12 drywall screws 12“ o.c.
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 6” 43 mil steel studs, 24” o.c.
  • 6-1/2” , R-19 glass fiber insulation friction fit into stud cavity
  • Base layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing)) gypsum panel applied vertically.
  • 1” Type S-12 drywall screws 12“ o.c. in the field.
  • Face layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1-5/8” Type S-12 drywall screws 12“ o.c.
