SOUND CONTROL ASSEMBLY : PGD-436-485-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 55

    NOAL 18-1024

  • Fire

    1 hr.

    U425

  • Dimensions

    Thickness: 7-1/4"

    Approx. Weight: 6.8 lb/ft²

  • Bearing

    Load Bearing

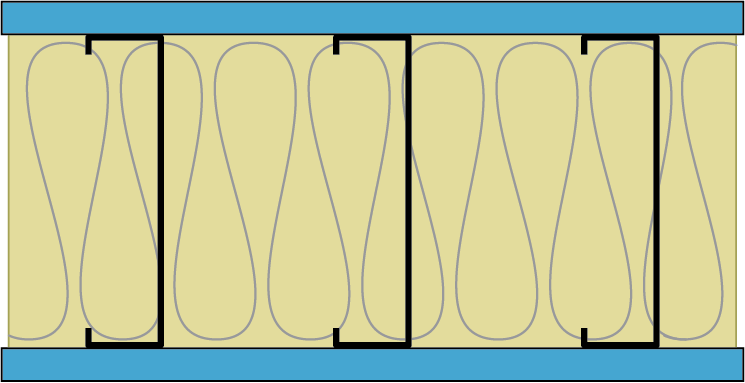

ASSEMBLY DETAILS

  • 1” Type S-12 drywall screws 12“ o.c.
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 6” 43 mil steel studs, 24” o.c.
  • 6-1/2” , R-19 glass fiber insulation friction fit into stud cavity
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 1” Type S-12 drywall screws 12“ o.c.
