SOUND CONTROL ASSEMBLY : PGD-436-485-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 46
NOAL 18-1021
-
Fire
1 hr.
U425
-
Dimensions
Thickness: 7-1/4"
Approx. Weight: 7.2 lb/ft²
-
Bearing
Load Bearing

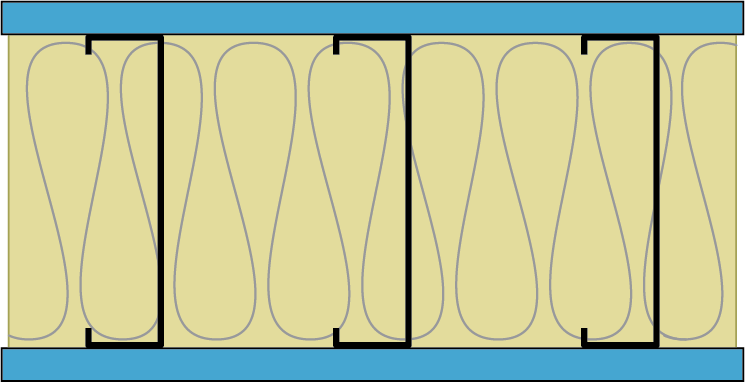

ASSEMBLY DETAILS
- 1” Type S-12 drywall screws 12“ o.c.
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 6” 43 mil steel studs, 16” o.c.
- 6-1/2” , R-19 glass fiber insulation friction fit into stud cavity
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 1” Type S-12 drywall screws 12“ o.c.
