SOUND CONTROL ASSEMBLY : PGD-43-604-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 42

    NOAL 18-0737

  • Fire

    2 hrs.

    U425

  • Dimensions

    Thickness: 6-1/8"

    Approx. Weight: 9.9 lb/ft²

  • Bearing

    Limited Load Bearing

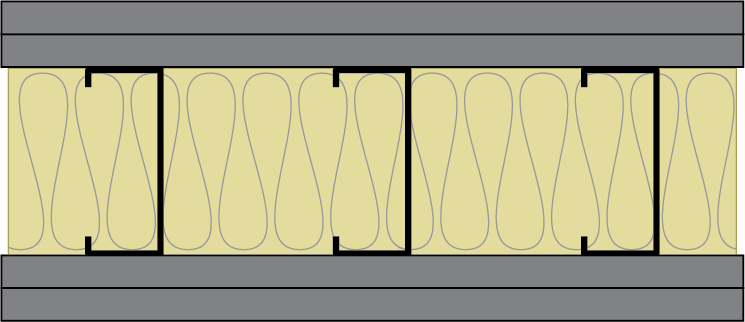

ASSEMBLY DETAILS

  • 1-5/8” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, screws spaced 12” o.c.).
  • Face layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, minimum 1” Type S-12 drywall screws spaced 12” o.c.).
  • Base layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 3-5/8” 43 mil steel studs, 16” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • Base layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, minimum 1” Type S-12 drywall screws spaced 12” o.c.).
  • Face layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1-5/8” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field (for fire, screws spaced 12” o.c.).
