SOUND CONTROL ASSEMBLY : PGD-33D-404-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 59

    NOAL 18-1001

  • Fire

    1 hr.

    V464, Config C

  • Dimensions

    Thickness: 9-1/2"

    Approx. Weight: 6.4 lb/ft²

  • Bearing

    Non-Load Bearing

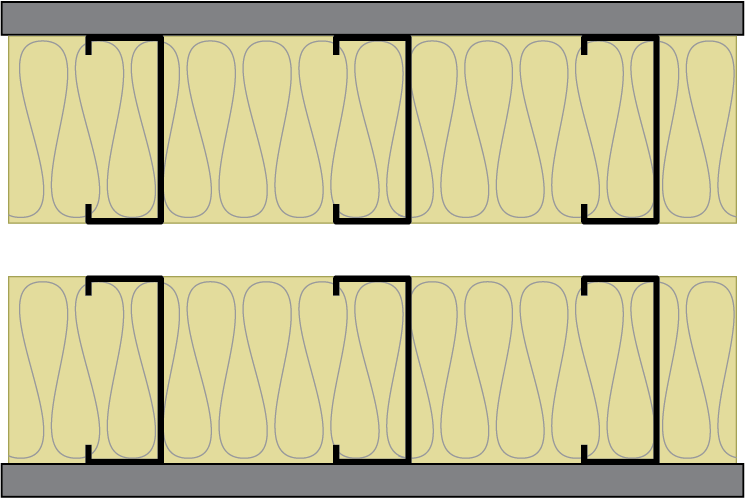

ASSEMBLY DETAILS

  • 1” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • 3-5/8” 33 mil steel studs, 16” o.c.
  • 1” air gap.
  • 3-5/8” 33 mil steel studs, 16” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
