SOUND CONTROL ASSEMBLY : PGD-33D-265-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 66
NOAL 20-0742
-
Fire
Non-Rated
Non-Rated
-
Dimensions
Thickness: 10-1/4"
Approx. Weight: 10.4 lb/ft²
-
Bearing
Non-Load Bearing

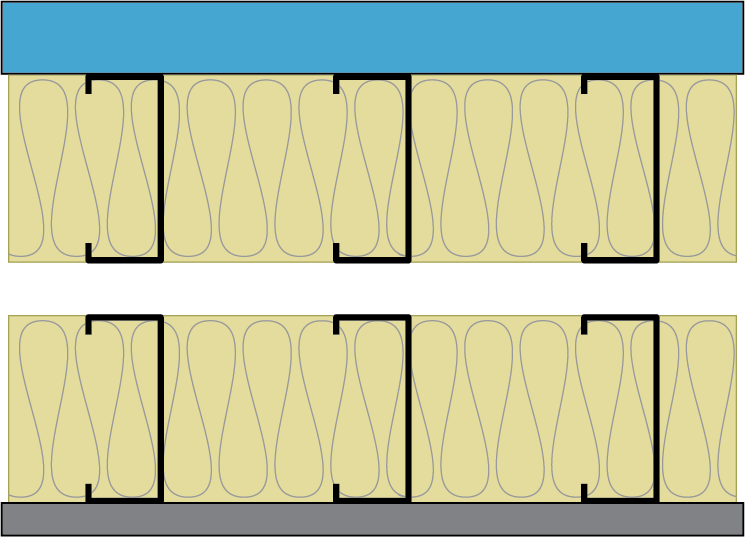

ASSEMBLY DETAILS
- 2” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
- One layer: 1-3/8” QuietRock® 545 gypsum panel applied vertically.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- 3-5/8” 33 mil steel studs, 16” o.c.
- 1” air gap.
- 3-5/8” 33 mil steel studs, 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1-1/4” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
