SOUND CONTROL ASSEMBLY : PGD-33D-155-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 72
NOAL 20-0754
-
Fire
Non-Rated
Non-Rated
-
Dimensions
Thickness: 11"
Approx. Weight: 14.4 lb/ft²
-
Bearing
Non-Load Bearing

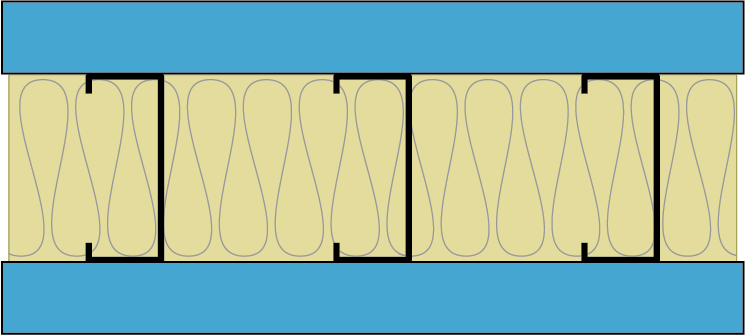

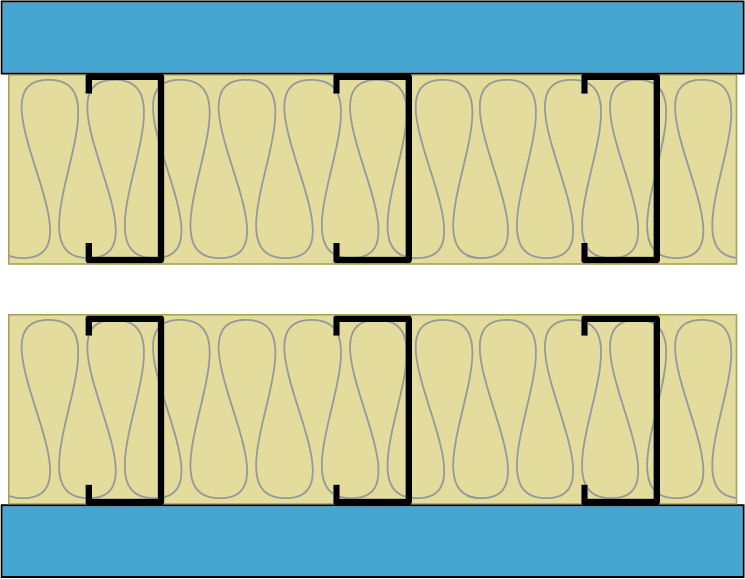

ASSEMBLY DETAILS
- 2” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
- One layer: 1-3/8” QuietRock® 545 gypsum panel applied vertically.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- 3-5/8” 33 mil steel studs, 16” o.c.
- 1” air gap.
- 3-5/8” 33 mil steel studs, 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One layer: 1-3/8” QuietRock® 545 gypsum panel applied vertically.
- 2” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
