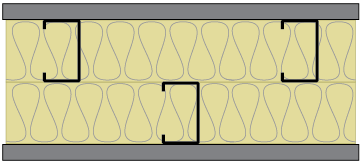

SOUND CONTROL ASSEMBLY : PGD-332S-572-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 55

    NOAL 24-06052

  • Fire

    Non-Rated

    Non-Rated

  • Dimensions

    Thickness: 7-1/4"

    Approx. Weight: 5.7 lb/ft²

  • Bearing

    Non-Load Bearing

ASSEMBLY DETAILS

  • 1-1/4” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
  • One layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • Staggered-double row (no air space) 2-1/2” 33 mil steel studs, 24” o.c.
  • 2-1/2” R-8 glass fiber insulation friction fit into stud cavity.
  • One layer: 5/8” Type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
