SOUND CONTROL ASSEMBLY : PGD-33-573-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 43
NOAL 21-0377
-
Fire
1 hr.
U425
-
Dimensions
Thickness: 4-7/8"
Approx. Weight: 5.9 lb/ft²
-
Bearing
Load Bearing

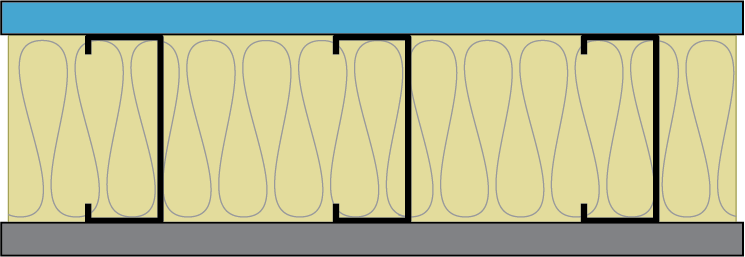

ASSEMBLY DETAILS
- 1” Type S-12 drywall screws spaced 8’’ at edges and 12” in the field (for fire, screws spaced 12” o.c.).
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 3-5/8” 33 mil steel studs, 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing)gypsum panel applied vertically.
- 1” Type S-12 drywall screws spaced 8’’ at edges and 12” in the field (for fire, screws spaced 12” o.c.).
