SOUND CONTROL ASSEMBLY : PGD-33-516-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 54

    NOAL 18-0205

  • Fire

    1 hr.

    U465

  • Dimensions

    Thickness: 5-1/2"

    Approx. Weight: 7.8 lb/ft²

  • Bearing

    Non-Load Bearing

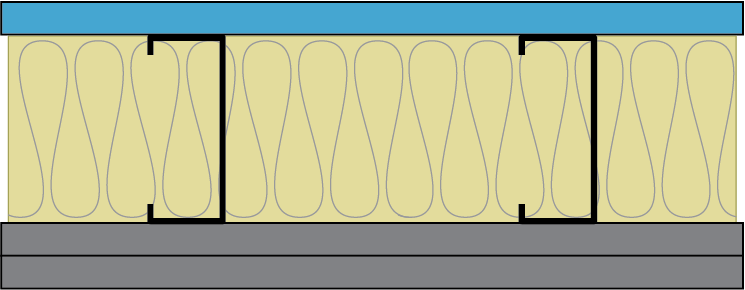

ASSEMBLY DETAILS

  • 1” Type S drywall screws spaced 8’’ at edges and 12” in the field.
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 3-5/8” 33 mil steel studs, 24” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied horizontally.
  • 1” Type S drywall screws spaced 8’’ at edges and 12” in the field.
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied horizontally.
  • 2” Type S drywall screws (for fire, minimum 1-5/8” Type S drywall screws) spaced 12” in the field.
