SOUND CONTROL ASSEMBLY : PGD-19-574-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 45

    NOAL 19-0426

  • Fire

    1 hr.

    V464, Config A

  • Dimensions

    Thickness: 4-7/8"

    Approx. Weight: 5.5 lb/ft²

  • Bearing

    Non-Load Bearing

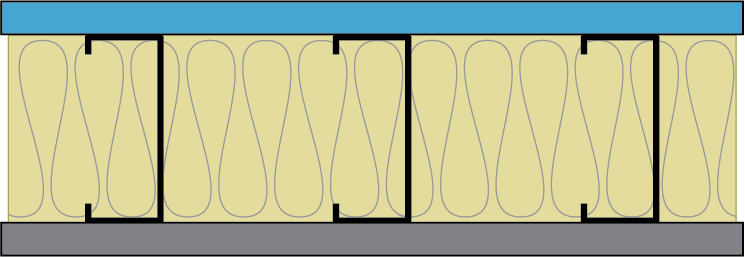

ASSEMBLY DETAILS

  • 1-1/4” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 3-5/8” 19 mil steel studs, 16” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • One layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, or PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
