SOUND CONTROL ASSEMBLY : PGD-19-558-16

ASSEMBLY COMPONENTS

Acoustical

STC 48

NOAL 19-0425
Fire

1 hr.

V464, Config A
Dimensions

Thickness: 4-7/8"

Approx. Weight: 6.1 lb/ft²
Bearing

Non-Load Bearing

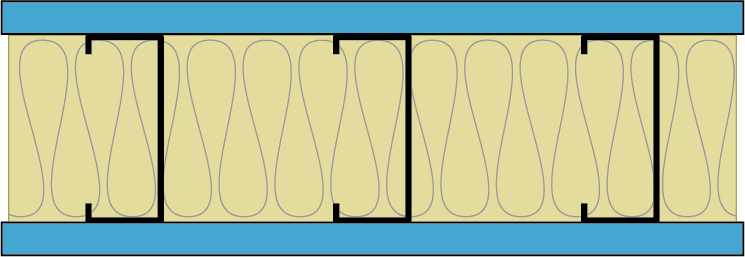

ASSEMBLY DETAILS

1-1/4” Type S screws spaced 8” o.c. at edges and 12” o.c. in
the field.
One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
3-5/8” 19 mil steel studs 16” o.c.
3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
1-1/4” Type S screws spaced 8” o.c. at edges and 12” o.c. in
the field.
