SOUND CONTROL ASSEMBLY : PGD-19-552-24
ASSEMBLY COMPONENTS
-
Acoustical
STC 52
NOAL 19-0927
-
Fire
2 hrs.
U411
-
Dimensions
Thickness: 6-1/8"
Approx. Weight: 9.1 lb/ft²
-
Bearing
Non-Load Bearing

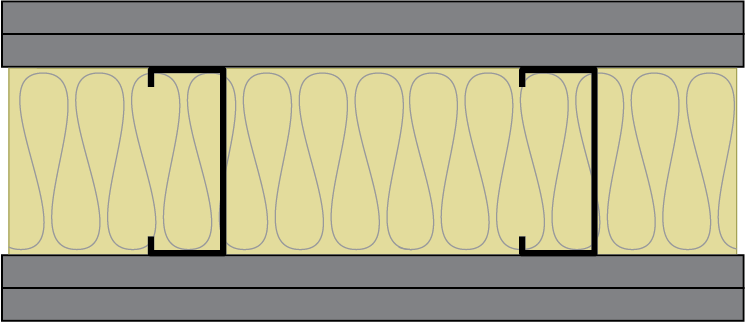

ASSEMBLY DETAILS
- 1-5/8” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
- Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
- 1” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
- Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
- 3-5/8” 19 mil steel studs, 24” o.c.
- 3-1/2”, R-11 glass fiber insulation friction fit into stud cavity. (24” o.c. studs were tested with 3-1/2” R-13)
- Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
- 1” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
- Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
- 1-5/8” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
