SOUND CONTROL ASSEMBLY : PGD-19-552-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 45

    NOAL 19-0428

  • Fire

    2 hrs.

    U411

  • Dimensions

    Thickness: 6-1/8"

    Approx. Weight: 9 lb/ft²

  • Bearing

    Non-Load Bearing

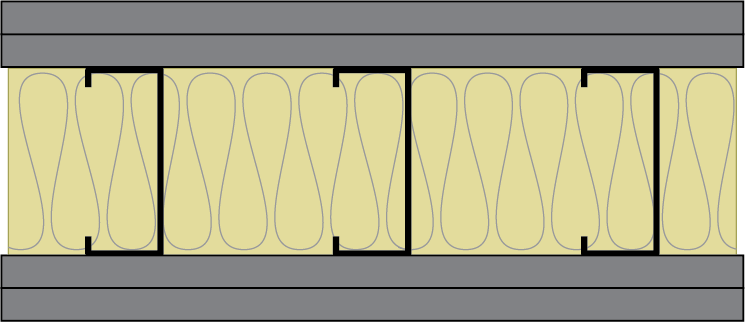

ASSEMBLY DETAILS

  • 1-5/8” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, screws spaced 12” o.c. at edges and 16” o.c. in the field)
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1” Type S drywall screws spaced 8” o.c. at edges and 12” o.c.  in the field. (for fire screws spaced 16” o.c.)
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 3-5/8” 19 mil steel studs, 16” o.c.
  • 3-1/2”, R-11 glass fiber insulation friction fit into stud cavity. (24” o.c. studs were tested with 3-1/2” R-13)
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1” Type S drywall screws spaced 8” o.c. at edges and 12” o.c.
  • in the field. (for fire screws spaced 16” o.c.)
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-5/8” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, screws spaced 12” o.c. at edges and 16” o.c. in the field)
