SOUND CONTROL ASSEMBLY : PGD-19-447-24

ASSEMBLY COMPONENTS

  • Acoustical

    STC 57

    NOAL 17-0539

  • Fire

    1 hr.

    V464, Config A

    WP-0975

  • Dimensions

    Thickness: 5-1/2"

    Approx. Weight: 7.6 lb/ft²

  • Bearing

    Non-Load Bearing

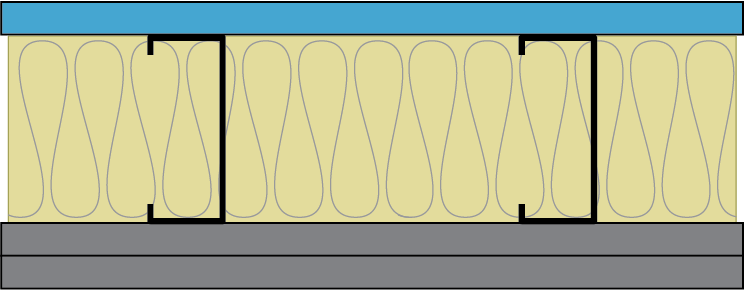

ASSEMBLY DETAILS

  • 1” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1-1/4” Type S screws)
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 3-5/8” 19 mil steel studs, 24”o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior or PABCO® Glass Sheathing) gypsum panel applied vertically
  • 1” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1-1/4” Type S screws)
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior or PABCO® Glass Sheathing) gypsum panel applied vertically
  • 1-5/8” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
