SOUND CONTROL ASSEMBLY : PGD-19-447-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 50
NOAL 17-0459
-
Fire
1 hr.
V464, Config A
-
Dimensions
Thickness: 5-1/2"
Approx. Weight: 7.6 lb/ft²
-
Bearing
Non-Load Bearing

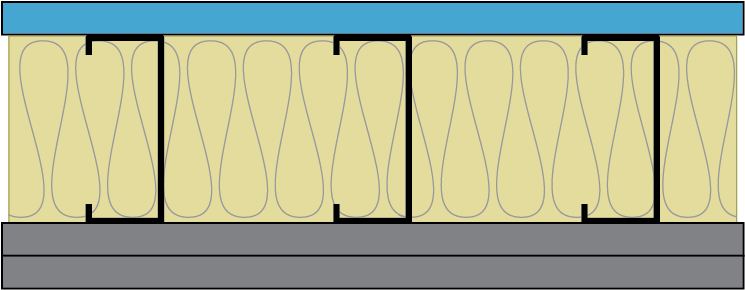

ASSEMBLY DETAILS
- 1” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1-1/4” Type S screws)
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 3-5/8” 19 mil steel studs, 16”o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior or PABCO® Glass Sheathing) gypsum panel applied vertically
- 1” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1-1/4” Type S screws)
- Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior or PABCO® Glass Sheathing) gypsum panel applied vertically
- 1-5/8” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
