SOUND CONTROL ASSEMBLY : PGD-186-607-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 41

    NOAL 24-06025

  • Fire

    1 hr.

    V464, Config A

  • Dimensions

    Thickness: 7-1/4"

    Approx. Weight: 5.1 lb/ft²

  • Bearing

    Load Bearing

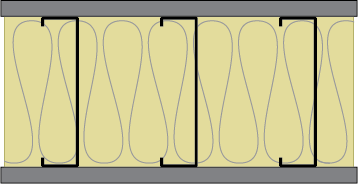

ASSEMBLY DETAILS

  • 1-1/4” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
  • One layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 6” 18 mil steel studs, 16” o.c.
  • 6-1/4”, R-19 glass fiber insulation friction fit into stud cavity.
  • One layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
