SOUND CONTROL ASSEMBLY : PGD-186-605-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 45

    NOAL 24-06026

  • Fire

    1 hr.

    U411

  • Dimensions

    Thickness: 8-1/2"

    Approx. Weight: 9.3 lb/ft²

  • Bearing

    Non-Load Bearing

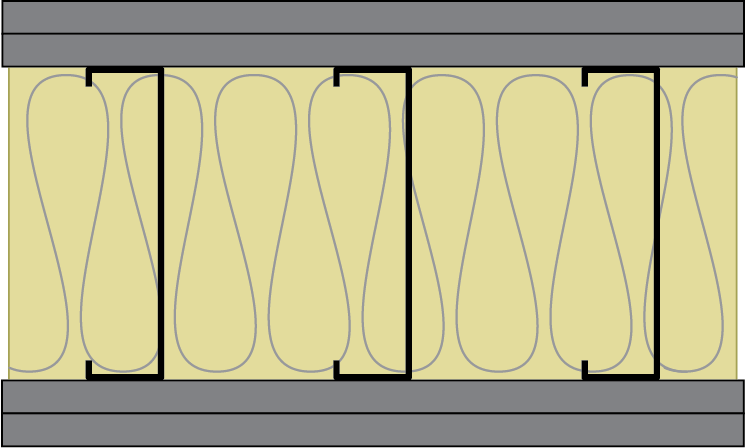

ASSEMBLY DETAILS

  • 1-5/8” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, screws spaced 12” o.c. at edges and 16” o.c. in the field)
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1” Type S screws spaced
  • 16” o.c.)
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 6” 18 mil steel studs, 16” o.c.
  • 6-1/4”, R-19 glass fiber insulation friction fit into stud cavity.
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-1/4” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1” Type S screws spaced
  • 16” o.c.)
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-5/8” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, screws spaced 12” o.c. at edges and 16” o.c. in the field)
