SOUND CONTROL ASSEMBLY : PGD-18-487-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 52

    NOAL 18-0860

  • Fire

    1 hr.

    U465

  • Dimensions

    Thickness: 5-1/2"

    Approx. Weight: 7.5 lb/ft²

  • Bearing

    Non-Load Bearing

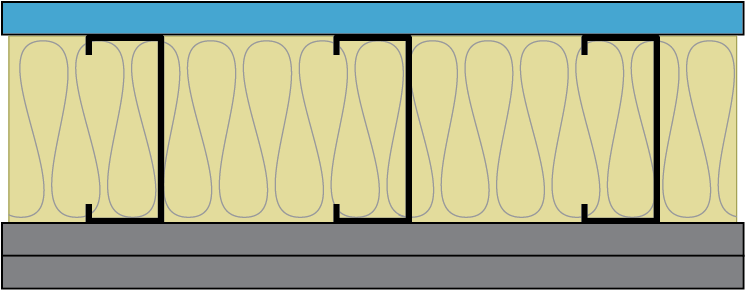

ASSEMBLY DETAILS

  • 1” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
  • One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
  • 3-5/8” 18 mil steel studs, 16” o.c.
  • 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
  • Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
  • Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior, PABCO® Glass Sheathing) gypsum panel applied vertically.
  • 1-5/8” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field.
