SOUND CONTROL ASSEMBLY : PGD-18-466-24
ASSEMBLY COMPONENTS
-
Acoustical
STC 56
RAL-TL-07-031
-
Fire
1 hr.
U465
-
Dimensions
Thickness: 6"
Approx. Weight: 8.9 lb/ft²
-
Bearing
Non-Load Bearing

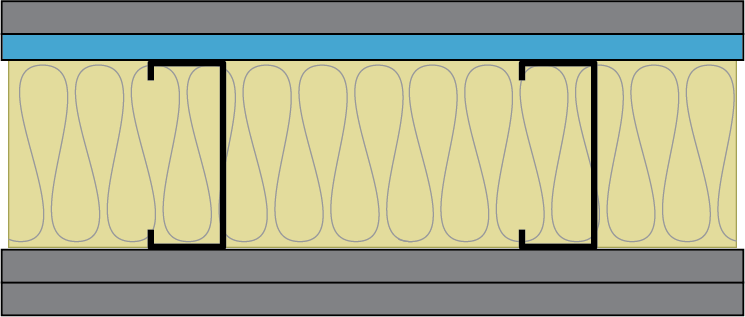

ASSEMBLY DETAILS
- 2-1/2 in. Type S drywall screws 16” o.c. (for fire, minimum 1-1/2” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field).
- Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior or PABCO® Glass Sheathing) gypsum panel applied vertically.
- 1-5/8” Type S drywall screws 16” o.c. (for fire, 1” minimum Type S drywall screws).
- Base layer: 1/2” QuietRock® 510 applied vertically.
- 3-5/8” 18 mil steel studs, 24” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- Base layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior or PABCO® Glass Sheathing) gypsum panel applied vertically.
- 1-5/8” Type S drywall screws 16” o.c. (for fire, 1” Type S drywall screws)
- Face layer: 5/8” type X (FLAME CURB®, PABCO® Glass Interior or PABCO® Glass Sheathing) gypsum panel applied vertically.
- 2-1/2 in. Type S drywall screws at 16” o.c. (for fire, minimum 1-5/8” Type S screws spaced 8” o.c. at edges and 12” o.c. in the field).
