SOUND CONTROL ASSEMBLY : PGD-15S-468-16

ASSEMBLY COMPONENTS

  • Acoustical

    STC 56

    NOAL 17-0917

  • Fire

    1 hr.

    V464, Config B

  • Dimensions

    Thickness: 8-1/2"

    Approx. Weight: 5.2 lb/ft²

  • Bearing

    Non-Load Bearing

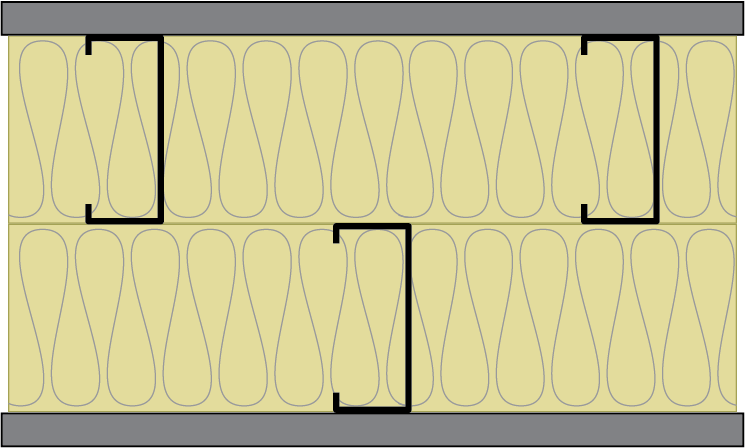

ASSEMBLY DETAILS

  • 1” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1-1/4” screws.).
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • Staggered-double row (no air space) 3-5/8” 15 mil steel studs, 16” o.c.
  • 6-1/4”, R-19 glass fiber insulation friction fit into stud cavity.
  • One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
  • 1” Type S-12 drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (for fire, minimum 1-1/4” screws.).
