SOUND CONTROL ASSEMBLY : PGD-15S-337-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 63
NOAL 17-0912
-
Fire
1 hr.
V464, Config B
WP-0952
-
Dimensions
Thickness: 8-1/2"
Approx. Weight: 6.7 lb/ft²
-
Bearing
Non-Load Bearing

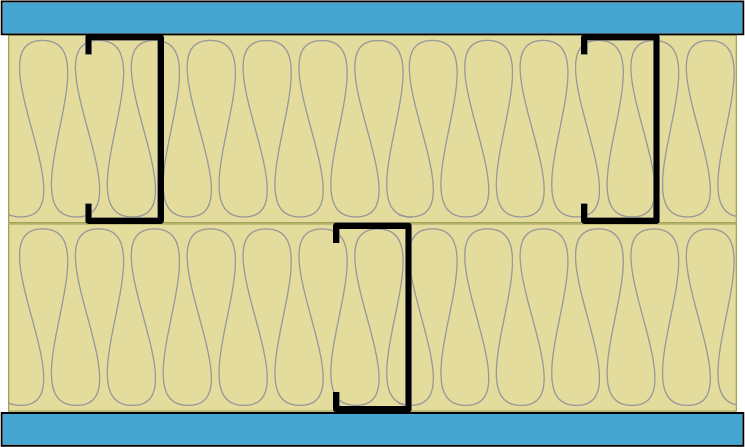

ASSEMBLY DETAILS
- 1” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (For fire, minimum 1-1/4” screws spaced 12” o.c.)
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- Staggered-double row 3-5/8” 15 mil steel studs, 16” o.c.
- 6-1/4” , R-19 glass fiber insulation friction fit into stud cavity.
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 1-1/4” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field. (For fire, minimum 1-1/4” screws spaced 12” o.c.)
