SOUND CONTROL ASSEMBLY : PGD-15-624-24
ASSEMBLY COMPONENTS

-
Acoustical
STC 48
NOAL 18-0520
-
Fire
1 hr.
V464, Config A
-
Dimensions
Thickness: 4-7/8"
Approx. Weight: 4.7 lb/ft²
-
Bearing
Non-Load Bearing

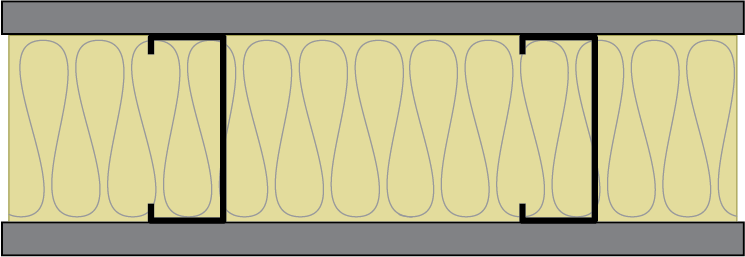

ASSEMBLY DETAILS
- 1-1/4” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
- One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 3-5/8” 15 mil steel studs, 24” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One layer: 5/8” type X (FLAME CURB®, MOLD CURB® Plus, ABUSE CURB®, PABCO® Impact Resistant, PABCO® Glass Interior, PABCO® Glass Sheathing or PABCO® Gypsum Sheathing) gypsum panel applied vertically.
- 1-1/4” Type S drywall screws spaced 8” o.c. at edges and 12” o.c. in the field.
