SOUND CONTROL ASSEMBLY : PGD-15-590-24
ASSEMBLY COMPONENTS
-
Acoustical
STC 50
OL-TL-12-0515
-
Fire
Non-Rated
Non-Rated
-
Dimensions
Thickness: 4-5/8"
Approx. Weight: 4.3 lb/ft²
-
Bearing
Non-Load Bearing

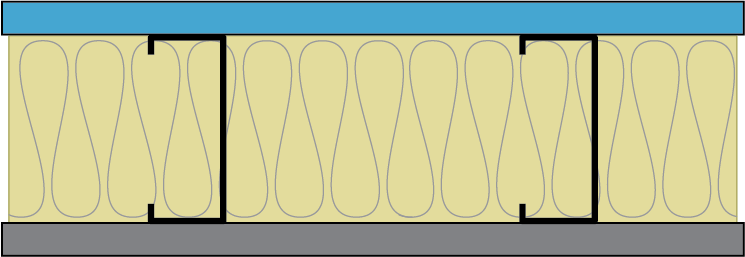

ASSEMBLY DETAILS
- 1-1/4” Type S drywall screws 12” o.c.
- One layer: 1/2” QuietRock® 510 gypsum panel applied vertically.
- 3-5/8” 15 mil steel studs, 24” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One layer: 1/2’’ PABCO® Regular, FLAME CURB® Super C or PABCO® Glass Interior gypsum panel applied vertically.
- 1-1/4” Type S drywall screws 12” o.c.
