SOUND CONTROL ASSEMBLY : PGD-15-485-16
ASSEMBLY COMPONENTS
-
Acoustical
STC 52
NOAL 19-0405
-
Fire
1 hr.
V464, Config A
-
Dimensions
Thickness: 4-7/8"
Approx. Weight: 6 lb/ft²
-
Bearing
Non-Load Bearing

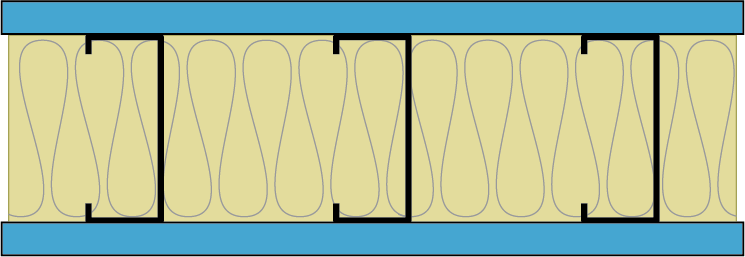

ASSEMBLY DETAILS
- 1” Type S drywall screws (for fire, minimum 1-1/4” Type S screws) spaced 8” o.c. at edges and 12” o.c. in the field.
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 3-5/8” 15 mil steel studs, 16” o.c.
- 3-1/2”, R-13 glass fiber insulation friction fit into stud cavity.
- One layer: 5/8” QuietRock® ES or QuietRock® ES MR type X gypsum panel applied vertically.
- 1” Type S drywall screws (for fire, minimum 1-1/4” Type S screws) spaced 8” o.c. at edges and 12” o.c. in the field.
